Case studies

Humberside

Server support, infrastructure and product design

Ongoing server and project support alongside 3D design, electronic design, embedded software and server infrastructure design for regional clients.

• Server support and project support
• 3D design
• Electronic design
• Embedded software
• Server infrastructure design

Lincolnshire

Electronics, manufacturing systems, websites and hotel IT

Work with several Lincolnshire customers spanning electronic design, reverse-engineered spare parts, production systems, websites, SEO and practical IT support for hospitality and local business systems.

• Electronic design and 3D modelling of bespoke parts
• Rapid reverse engineering of discontinued spa and hot-tub fittings
• New product 3D design, prototype and injection mould tooling support
• Full production manufacturing order procedure system, later extended with label printing, secure document storage and reporting
• Website builds for more than one local business
• SEO for one of those websites
• IT support for hospitality and local business systems

Lincolnshire

Air source heat pump controller for a commercial hot tub

A Lincolnshire leisure site needed a simple way to run an outside air source heat pump with, or instead of, the built-in heater. Triple R Tech designed a DIN-rail controller with safe switching, sensing and wireless setup. Staff could then pick the heat source based on power cost, warm-up speed or holding a steady standby temperature.

• Integration of an external air source heat pump with the existing hot-tub heater circuit

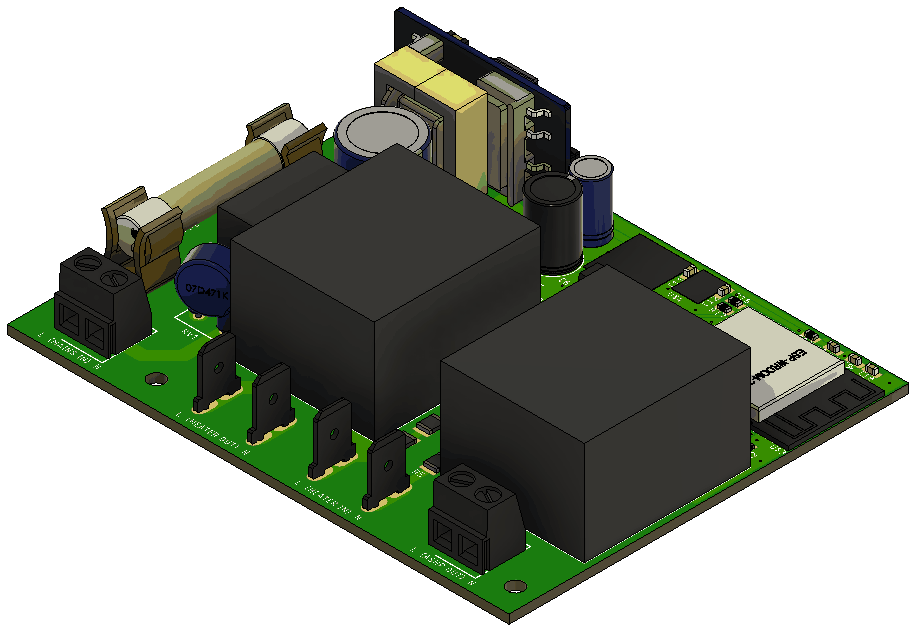

• Custom DIN-rail controller specification and electronic design
• Relay selection with fuse protection, inrush protection and opto isolation
• Current sensing to confirm relay state and hot-tub heat demand
• Wi-Fi and Bluetooth control for boost, heat-pump-only and dual-source modes
• Schematic and CAD support ready for installation and further development

Lincolnshire

Reverse-engineered spa filter assembly clip

A spa filter clip had gone out of stock and overseas supply was too slow or costly. Triple R Tech measured the old part, modelled a replacement and supplied a same-day 3D-printed sample. After a good fit check, a short PETG run followed, with a silicone mould ready for stronger resin parts later.

• Measurement and reverse engineering of a discontinued filter assembly clip

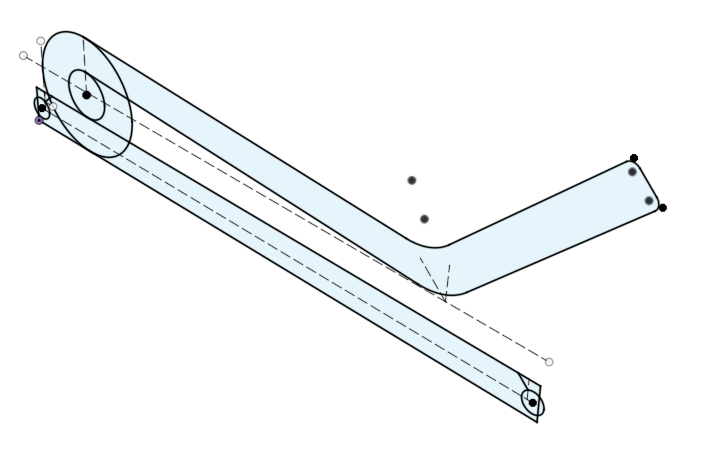

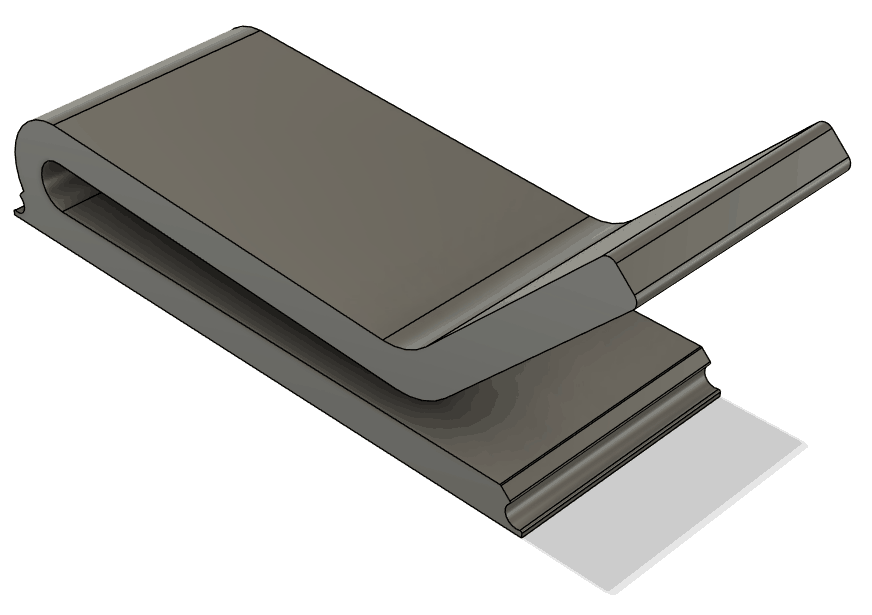

• 3D CAD modelling matched to the original fit and function

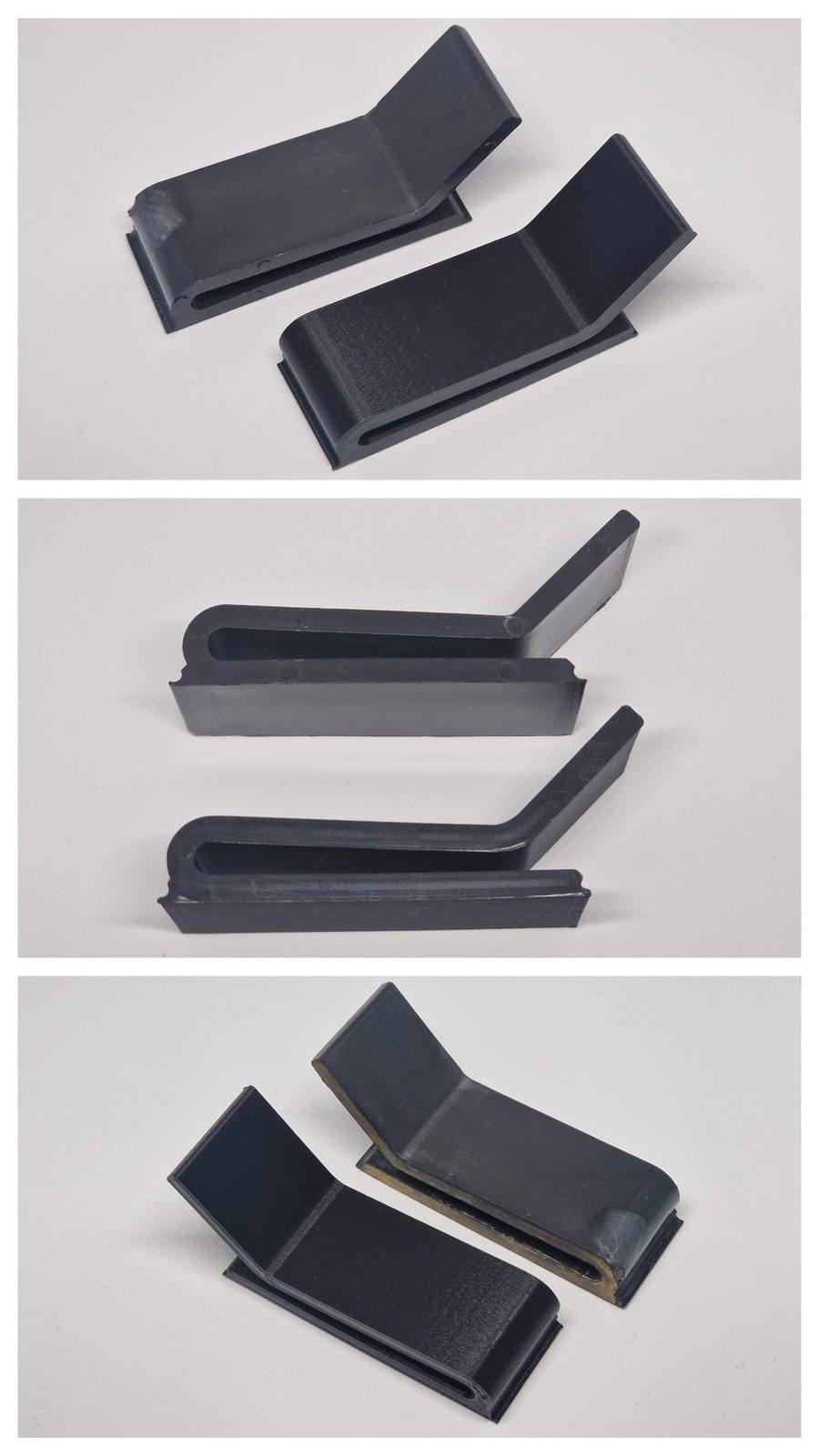

• Next-day 3D-printed sample for on-site trial
• Short-run PETG manufacture suited to a warm wet environment
• Silicone mould tooling path for glass-filled resin production

Lincolnshire

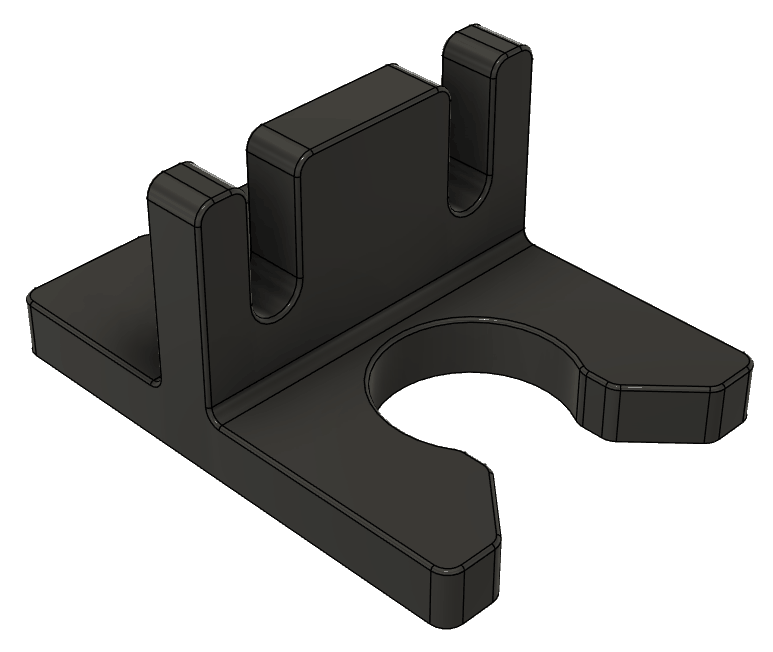

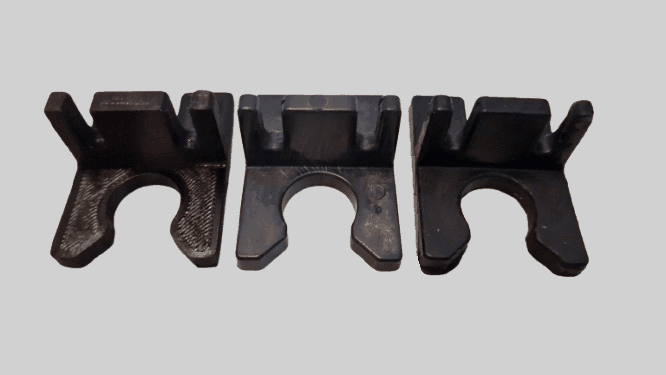

Reverse-engineered skimmer grate weir bracket

A second out-of-stock hot-tub skimmer bracket needed a UK fix without a long overseas wait. Triple R Tech scanned the part, built a CAD model, fitted a PETG sample and made a small batch so service could continue, with a mould path ready for longer-term resin parts.

• Scan and measurement of a discontinued skimmer grate weir bracket
• Accurate 3D modelling against the original part geometry
• Rapid 3D-printed prototype validated on the equipment the next day
• Small-batch PETG parts chosen for strength in warm conditions
• Silicone mould preparation for glass-filled resin alternatives

Lincolnshire

Hotel booking email deliverability and SPF repair

A Lincolnshire hotel saw booking emails marked as spam or blocked after stricter Google and Microsoft mail checks. On site, an incorrect SPF record was stopping the booking system from sending on the hotel domain. Triple R Tech found the DNS fix, got access with the website provider, updated the record and restored clean delivery the next day.

• On-site review of booking-system outbound email failures
• Diagnosis of spam and block issues linked to Google and Microsoft mail policy changes
• SPF record analysis for a third-party booking sender
• Coordination with the website provider to gain DNS access
• Correct DNS authentication change and next-day delivery confirmation

Manchester

Enclosure design and electronic prototype

3D enclosure design paired with an electronic prototype for a Manchester client needing a practical path from concept to a buildable unit.

• 3D enclosure design
• Electronic prototype

Yorkshire

Client work across Yorkshire

Project support for Yorkshire clients as part of wider England-wide delivery across web, software and electronics.

• Regional client delivery
• Technology support across the service range

Staffordshire

Product dashboard and infrastructure

Dashboard design for an existing product, with supporting infrastructure work so operators could see and manage the system clearly.

• Dashboard design for an existing product
• Infrastructure design and support

Leicestershire

Product assembly and packaging

Hands-on product assembly and packaging support for a Leicestershire client moving from design into finished units.

• Product assembly
• Packaging

Hampshire

Embedded software and electrical documentation

Embedded software for an existing product, plus electrical cabinet drawings and manuals so the installation and maintenance side stayed clear.

• Embedded software for an existing product
• Electrical cabinet drawings
• Manuals and supporting documentation

Hampshire

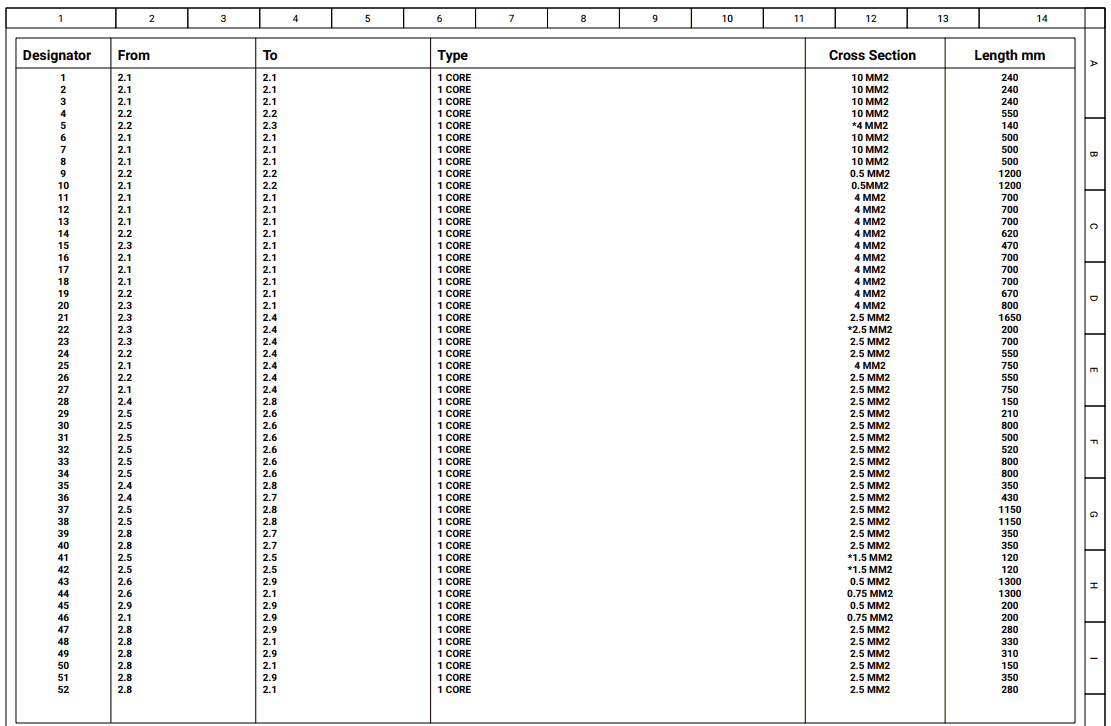

Electrical cabinet schematic, layout and cable schedule

A Hampshire supply partner needed full papers for a new product cabinet after their builder could not finish the design pack. Triple R Tech mapped the physical cabinet, traced each wire, listed the parts and produced a wiring diagram, panel layout views and a cable schedule ready for approval.

• Physical reverse-mapping of an assembled electrical cabinet
• Wire-by-wire tracing with measured lengths and conductor sizes
• Component identification for a production bill of materials

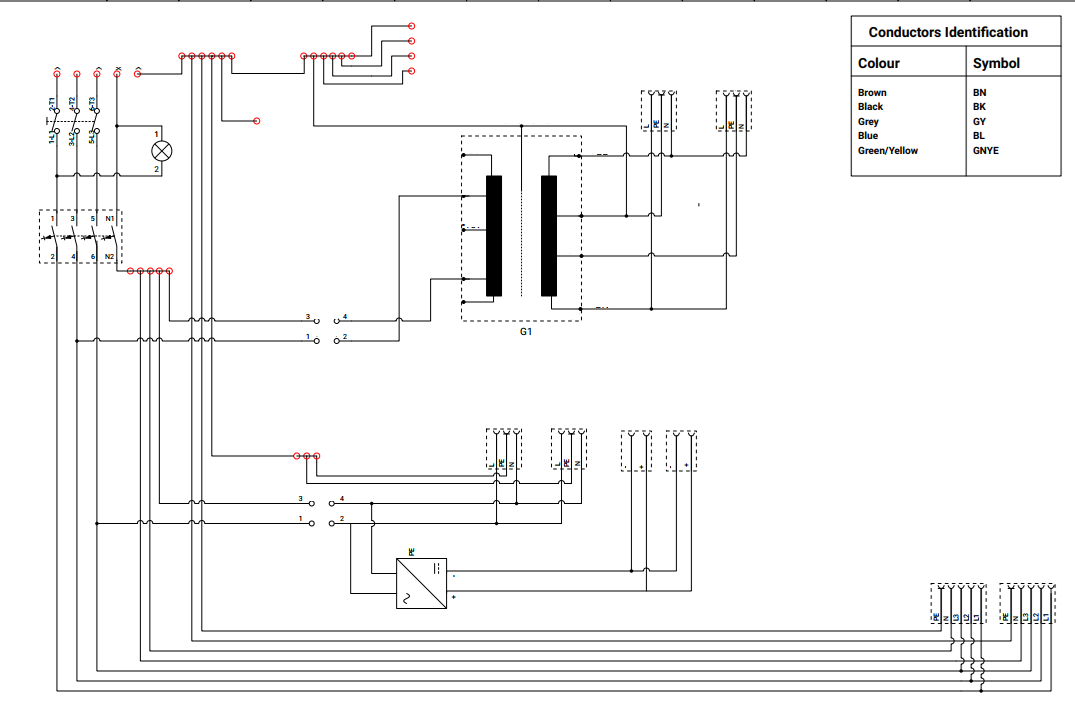

• Detailed wiring schematic with conductor colour coding

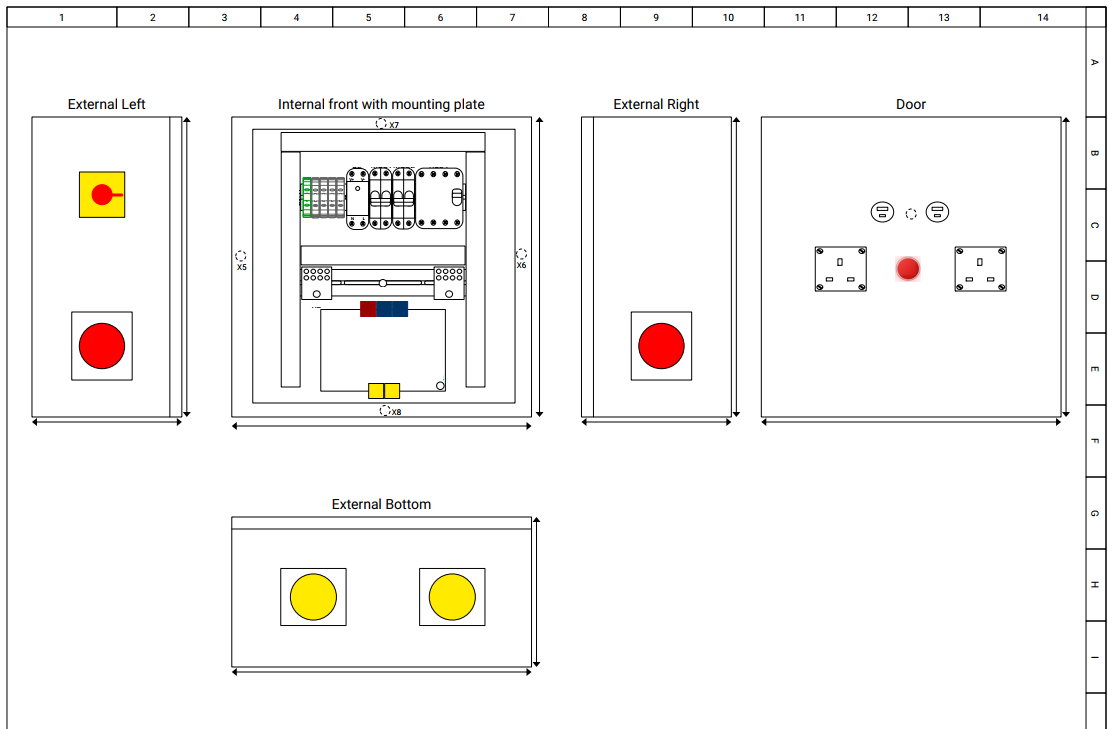

• Multi-view panel layout covering external faces, door and internal mounting plate
• Cable schedule and documentation pack prepared for product approval
